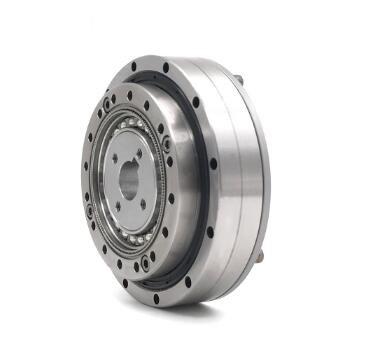

The harmonic gear transmission is invented by the American inventor C.W.Musser in 1955. It is a new type of transmission mode which uses flexible working components to move into motion or power by elastic deformation. It breaks through the mode of mechanical transmission with rigid component mechanism and uses a flexible component to realize mechanical transmission. Thus, a series of special functions which are difficult to achieve by other transmission are obtained. Because the deformation process of the intermediate flexible member is basically a symmetrical harmonic, it is named. In addition to the former Soviet Union called this kind of transmission waveform transmission or flexible wheel transmission, the United States, Britain, Germany, Japan and other countries are called "harmonic drive".

The principle of the harmonic gear deceleration is the relative motion of the flexible wheel, the rigid wheel and the wave generator, which is mainly the flexible deformation of the flexible wheel to realize the movement and the transmission of the power.
The oval cam in the wave generator rotates in the flexible wheel to make the flexible wheel deform, and the flexible wheel gear and the rigid wheel gear at both ends of the shaft of the oval cam shaft of the wave generator. The flexible wheel teeth at both ends of the short shaft are removed from the gear teeth at the ends of the short axis.
The teeth between the long axis and the short axis of the wave generator are located in the different sections of the two circumference of the flexible wheel and the steel wheel in the meshing state, which is called meshing. In the state of gradual withdrawal from meshing and semi-meshing, it is called meshing out. When the wave generator is continuously rotated, the flexible wheel produces the deformation continuously, making the two wheels rodent, meshing, meshing and disengaging four kinds of motion to change their original working state and produce the wrong tooth motion, and realize the movement transmission of the active wave generator to the flexible wheel.

Delivery term is 10-15 days after get order

Package : Carton ,Wooden Case

APPLICATION:

Collaborative robot ,MOBILE ROBOT, Intelligent Logistics,INDUSTRIAL ROBOT,SERVICE ROBOT

Dalian Motion Engineering Co., Ltd. Mainly around bearing design, research and development, manufacturing, development of rolling mill bearings, blower bearings, water pump bearings, metallurgical mill bearings, mine crusher bearings, cement vertical grinding bearings, metallurgical rolls and so on.
Provide bearing quality testing for bearing customers, bearing public welfare optimization; failure bearing analysis;
It provides value-added services for bearing optimization in the rolling mill industry, mining machinery and cement industry.

Sale :whjbearing@qq.com

Sale: castingunion@vip.qq.com
